STEERTEK NXT for Bus/RV or Medium-Duty

Fabricated front steer-axle for medium-duty, bus and motorhome

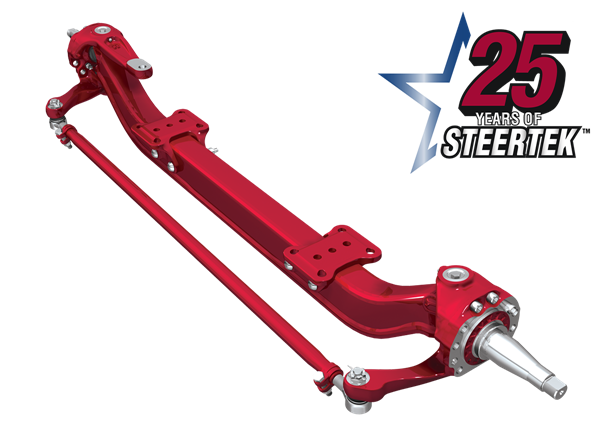

STEERTEK NXT BUS/RV or Medium-duty Front Steer Axle For Bus/RV

Based on proprietary design and manufacturing technologies that provide a superior strength to weight ratio, STEERTEK™ NXT serves as the durable, lightweight alternative to traditional I-beam axles. The patented two-piece knuckle contributes to outstanding turning radius and reduced maintenance. STEERTEK NXT is available in capacities from 8,000 to 14,600 pounds and is approved for medium-duty and bus applications.

STEERTEK NXT BUS/RV or Medium-duty Front Steer Axle For Bus/RV

Features and Benefits

Warranty

  • STEERTEK™ NXT axles come with a standard 10-year, 1-million mile limited warranty*


Reduced Maintenance

  • Unique two-piece knuckle design eliminates the need to remove the kingpin to service the bushings, helping to reduce maintenance time and life-cycle costs
  • Premium kingpin bushings and seals provide enhanced protection from the elements to improve bushing life and extend service intervals up to 40,000 miles


Increased Maneuverability

  • Optimized steering performance delivers up to 55-degrees of wheel cut for better maneuverability.


Rigid Axle Beam

  • The box-shaped cross section resists horizontal, vertical and twisting forces more effectively than traditional I-beam axles while helping to reduce dynamic camber and toe changes
  • Continuous beam architecture minimizes stress points for added durability


Brake Compatibility

  • Compatible with drum brakes, hydraulic disc brakes, or disc brakes.
  • Accepts both 5/8" and 3/4" brake hardware.


Advanced Suspension Integration

  • The STEERTEK NXT axle easily integrates with a variety of suspension configurations

Specifications

Contact Hendrickson for specifications and Hendrickson or vehicle manufacturer for availability.
